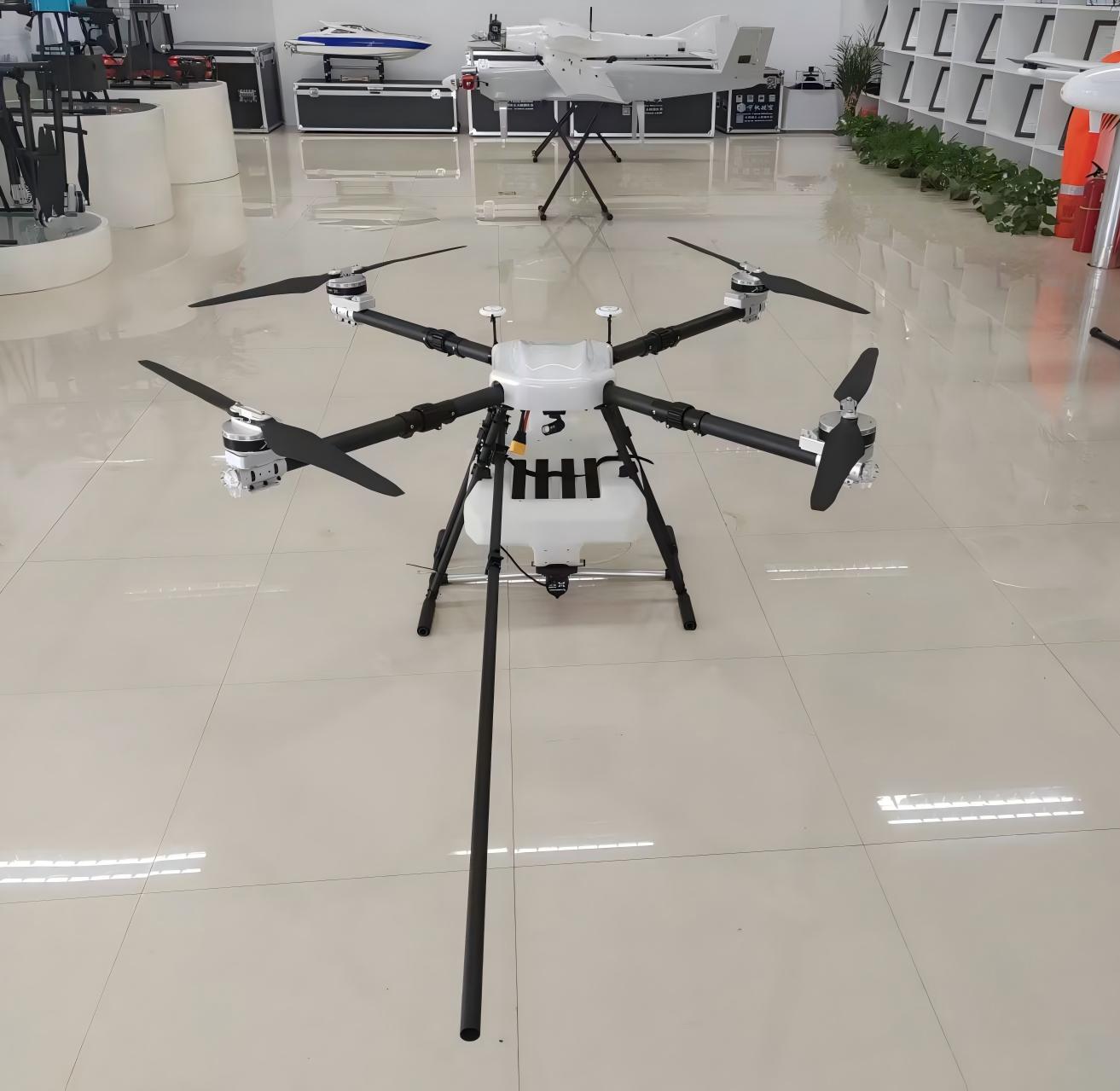

Jijiang G-Master Series — Multi-Purpose UAV for Plant Protection & Building Cleaning**
**Physical Specifications of the Drone:**
1. **Frame Material:** Carbon fiber composite material;
2. **Motor:** Waterproof brushless motor;
3. **Propeller:** 34-inch composite propeller;
4. **Wheelbase:** 1500 mm;
5. **Empty Weight:** 13.5 kg

**Performance Specifications of the Drone:**
1. **Maximum Flight Altitude:** 3000 m (at sea level);
2. **Operating Height:** ≤ 120 m (recommended height);
3. **Maximum Payload:** 20 kg;
4. **Endurance (unloaded):** ≥ 20 minutes;
5. **Power Supply:** Lithium battery;
6. **Waterproof Rating:** ≧ IP45;
7. **Operating Temperature:** -20 ℃ to +60 ℃;
8. **Environmental Humidity:** ≤ 95%

**Dual-Purpose, Cross-Category Versatility**
Designed for both agricultural plant protection and high-altitude building cleaning. Features a modular quick-release system for seamless switching between a 40L liquid tank/70L spreading system and a high-pressure cleaning kit, solving the issue of idle agricultural drones and expanding into the urban maintenance market.

Plant Protection Mode: Precision, Efficiency, Saving Chemicals & Labor**
- **Intelligent Spraying**: Dual-atomization centrifugal nozzles with adjustable droplet size (50-400 microns), increasing liquid adhesion by 30%. AI prescription map variable-rate application saves pesticides by 20%.
- **Terrain Following Flight**: Radar and vision fusion automatically adapts to complex terrains like hills and orchards, with omnidirectional obstacle avoidance for obstacles like power lines.
- **High-Efficiency Operation**: 12L/min large flow rate, 10-11m spray swath, covering hundreds of acres per day. 9-minute fast charging enables continuous field operation.

**Cleaning Mode: Safely Replacing "Spidermen," Efficient & Eco-Friendly**
- **High-Altitude Cleaning**: High-pressure water circulation pump + multi-angle rotating nozzle. Supports tethered mode with ground water supply for unlimited endurance.
- **Constant Pressure Attachment**: Intelligent pressure control, cleans glass curtain walls with soft brushes without scratching. Efficiency of 20㎡/min, 20 times that of manual labor.
- **Water-Saving & Green**: Intelligent water circulation saves 60% water and 50% detergent. Expandable for solar panel cleaning, improving power generation efficiency by 15%.

**Intelligent Core: Full-Scene Perception, Safe & Reliable**
- **Multi-Layer Obstacle Avoidance**: LiDAR + Millimeter-Wave Radar + Trinocular Vision accurately identifies power lines and steel structures. L3 level autonomous flight.
- **Environmental Tolerance**: IP65 protection, corrosion-resistant pipes, whole unit washable, adaptable to pesticide and water mist erosion.
- **Economic Return**: One machine for multiple uses, significantly reducing idle time and ensuring quick return on investment. An all-in-one solution in the low-altitude economy sector.
