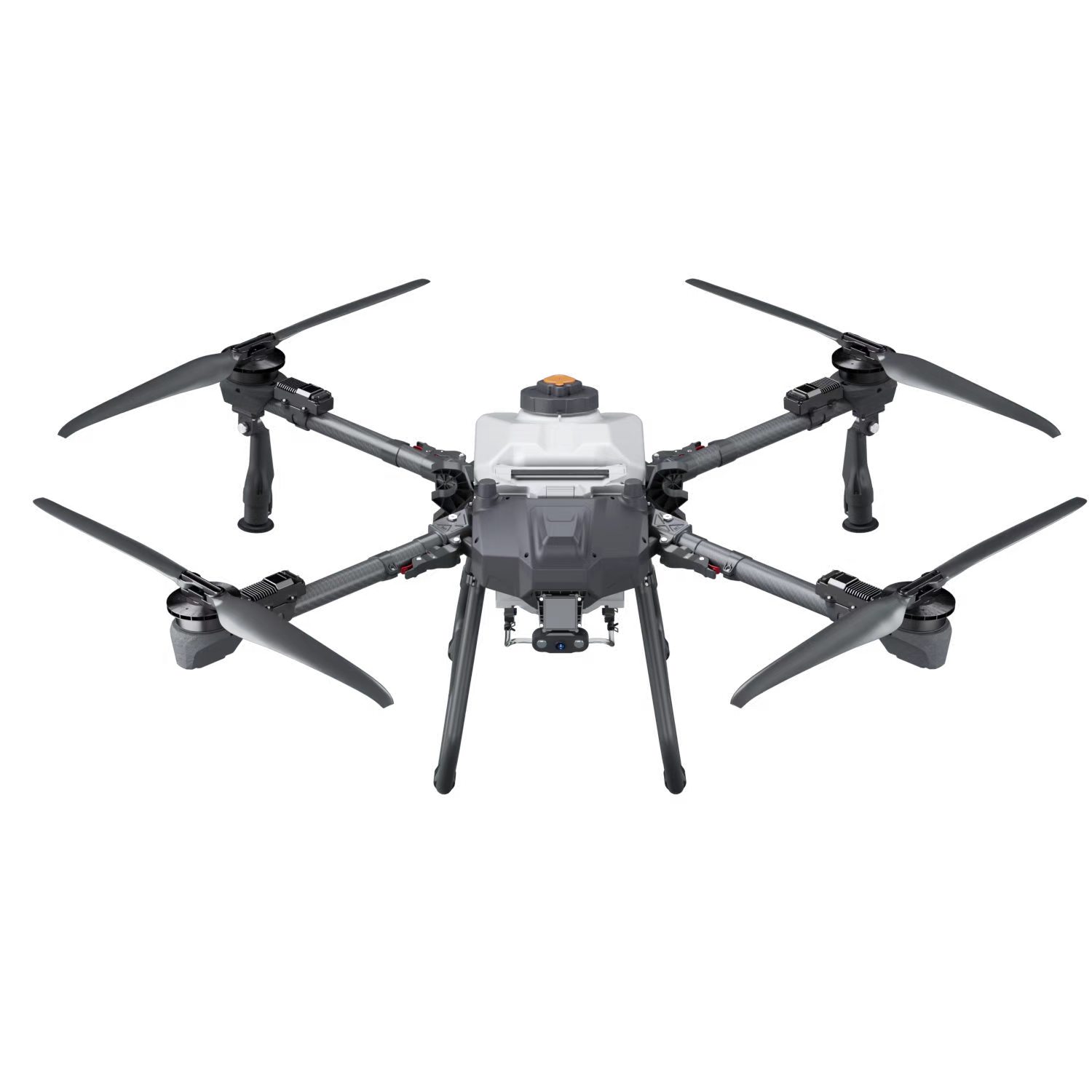

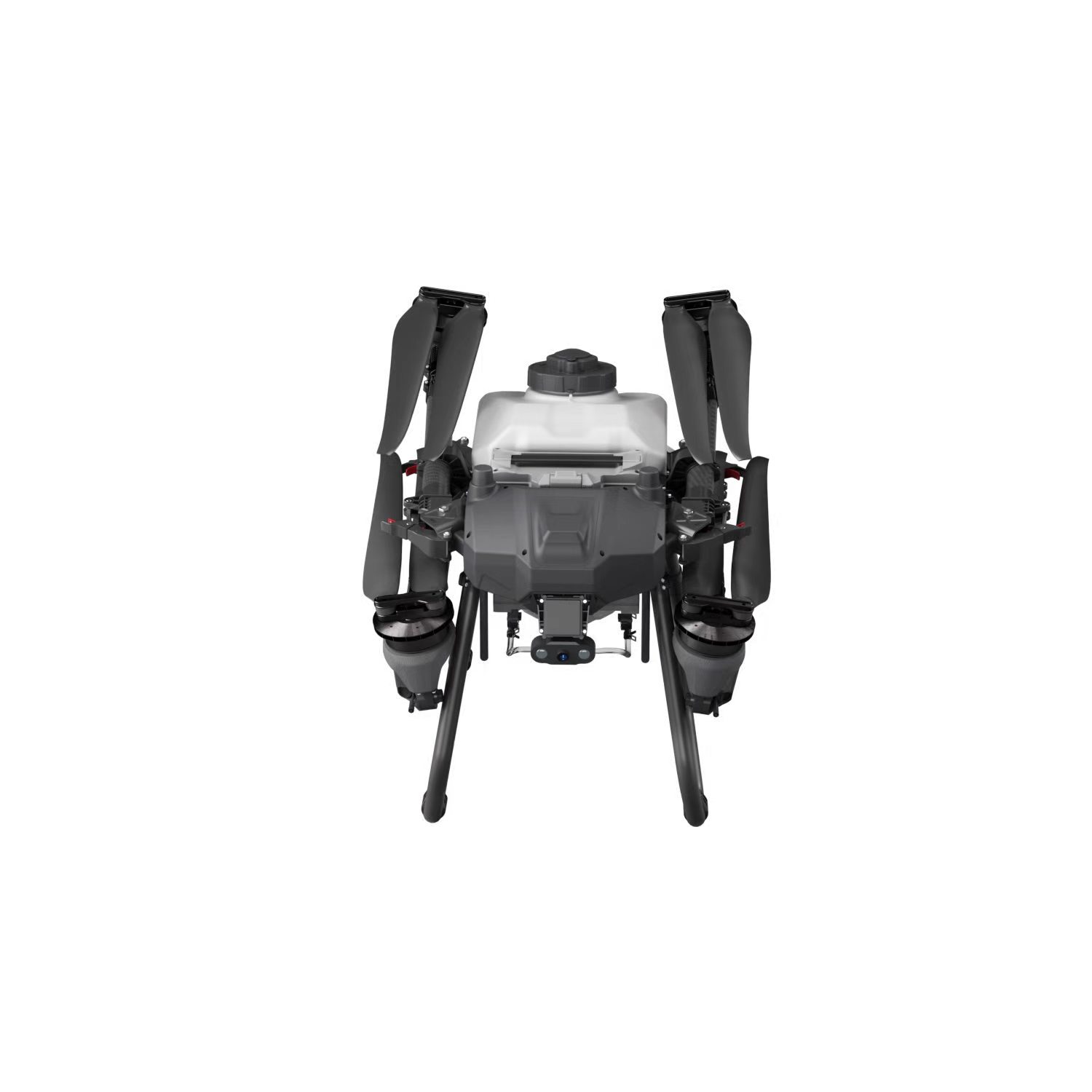

LV20
<
>
LV20
LV20
LV20

LV20

The LV series of industrial-grade agricultural drones redefines plant protection technology with a hardcore gray and black aesthetic! The inclined folding body is adopted the storage and four-legged support structure, with the streamlined body design, both exude a sense of power.

Customizable according to technical specifications / Technical-parameter-based customization available.

Email:

falan@falantrading.com

Categories:

Agricultural Spraying Drone

Basic info
Unfolded Size：1373*1300*715mm
Folded Size：665*800*715mm
Wheelbase：1700mm
Tank Capacity：20L
Granule Capacity：40L
Weight：18kg
Take-Off Weight：44kg

Spray Settings
Nozzle：Centrifugal Nozzel
Spray Width ：5-8m
Flow Rate：5L/min
Efficiency：50mu/h

Flight Parameters
Battery Capacity:14S 22000mah
Operating Voltage:58.8V(14s)
Endurance W/O load:18min
Endurance With full load:8min
Speed:5-10m/s

Factory

Company certificate

Packing & Delivery

We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
