YM50-Xingtai Falan Trading Co., Ltd.

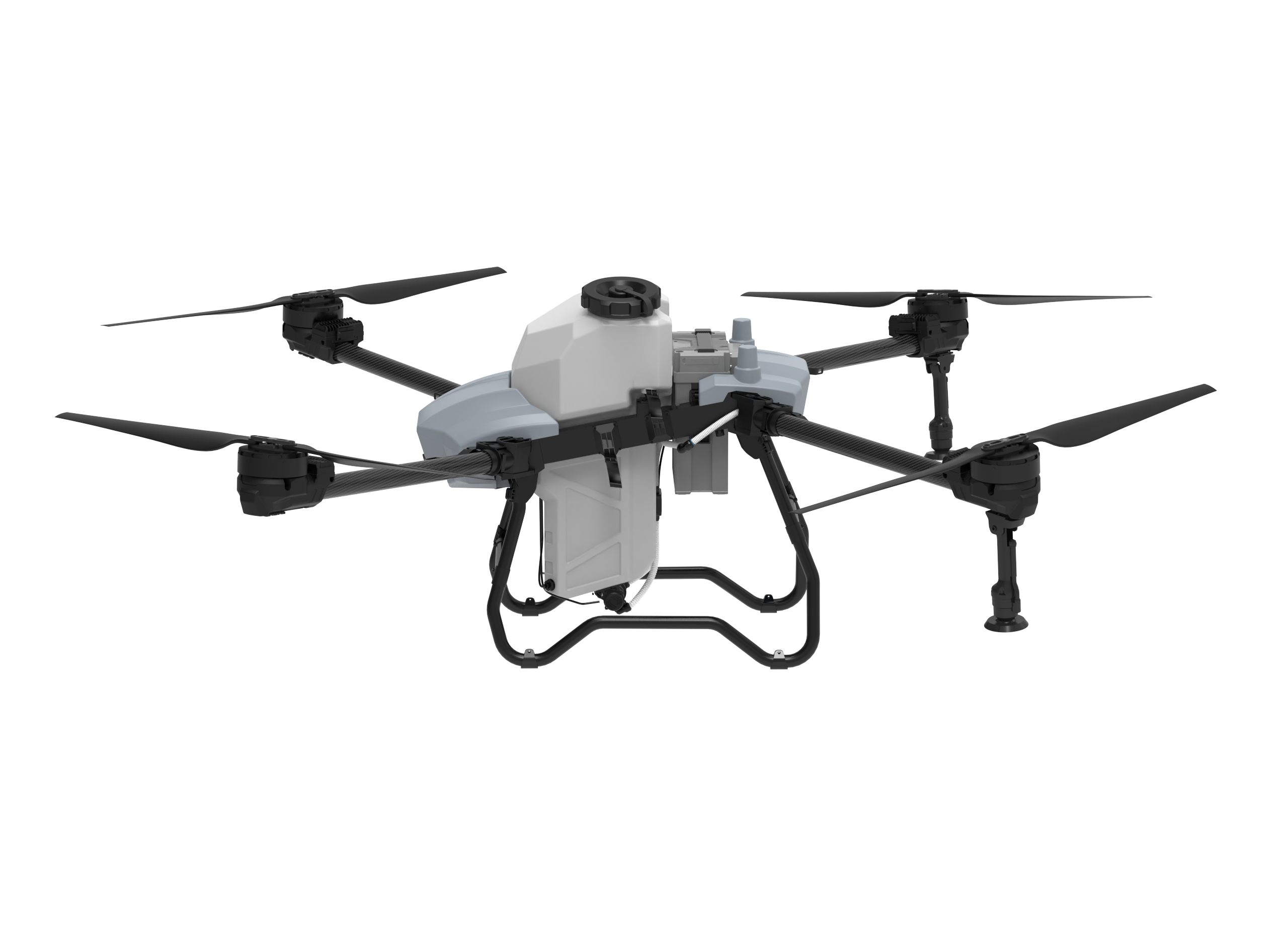

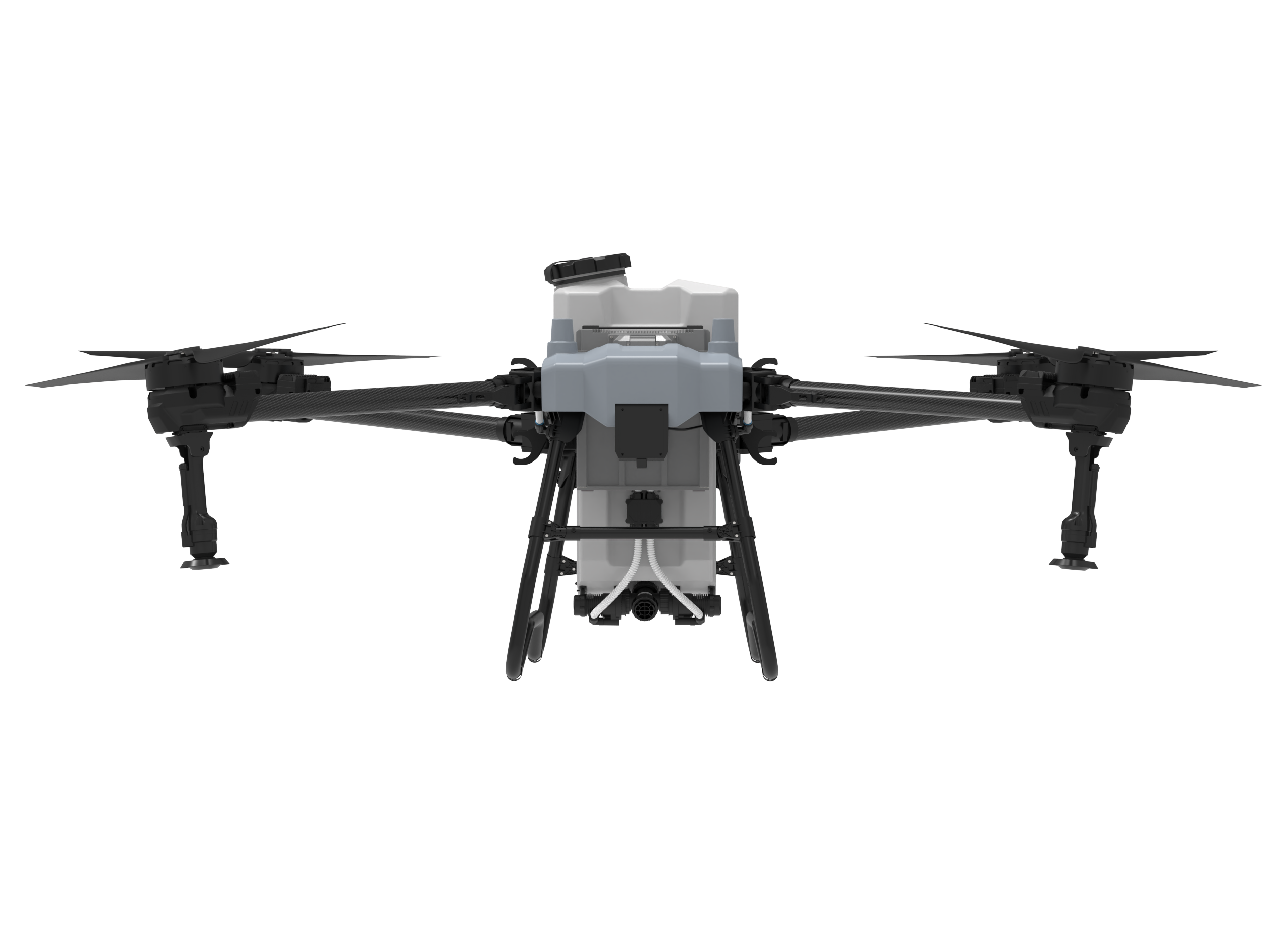

YM50

Email:

falan@falantrading.com

Categories:

Agricultural Spraying Drone

Basic parameter
Unfolded Size:3150×3000×880mm
Folded Size:1270×775×880mm
Wheelbase:2350mm
Tank Capacity:50L
Granule Capacity:70kg
Weight(without battery):36.5kg
Max.Take-Off Weight:101.1kg

Spray Settings
Nozzle：Centrifugal Nozzel*2
Flow Rate:12-16L/min
Spray Width:6-10m

Flight Parameters
Battery Capacity:18S 30000mAh
Endurance W/O load:22min45s
Endurance With full load:8min40s
Speed:1-12m/s

Factory

Company certificate

Packing & Delivery

We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.

GET A QUOTE

Whether you have any questions about our products, please feel free to contact us, we will reply as soon as possible.
